QT10-15 Automatic Block Making Machine
描述

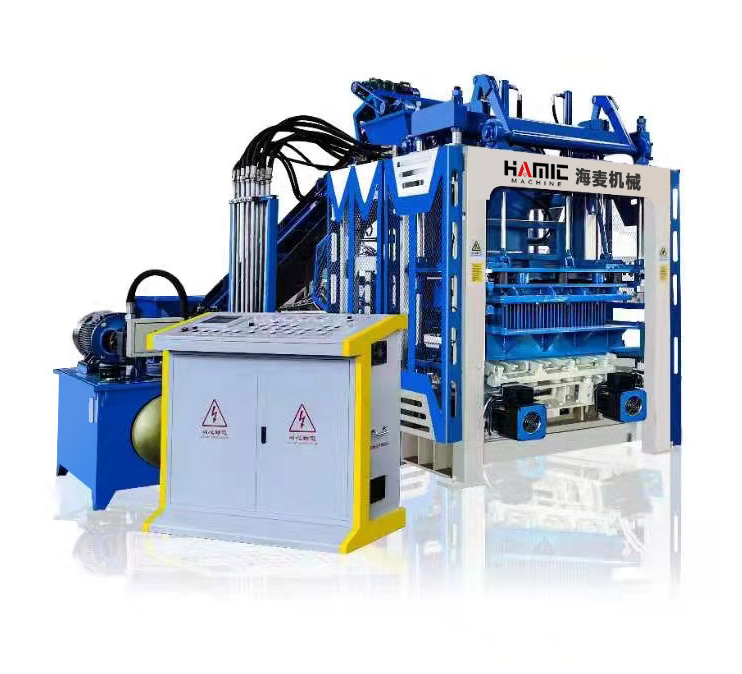

QT10-15 Fully Automatic Concrete Block Making Machine: The Core Engine for Intelligent and Eco-Friendly Brick Production
The QT10-15 Fully Automatic Concrete Block Making Machine is a large-scale, automated brick-making system that integrates hydraulic transmission, intelligent control, and high-efficiency vibration technology. Serving as the primary host unit for block production lines, it is equipped with an intelligent PLC control system that ensures stable, high-level automation.
Technical Specifications
| Parameter | Value |
| Vibration Frequency | 3800-4500 RPM |
| Gross weight | 14500 kg |
| Dimension | 11500 × 4050 × 2800 mm |
| Power | 56 kW |
| Cycle time | 15-23 s |
| Rated pressure | 21 Mpa |
| Vibration force | 105 KN |
| Pallet size | 1100 × 900-950 mm |
| Vibration Type | Hydraulic vibration |
| Stacker machine power | 4.5 kW |
High-Speed Twin-Shaft Mixer Technical Specifications
| Model | Moisture Content | Feed Size (mm) | Power (kW) | Capacity (T/h) | Main Shaft Safe Speed (R/Min) |
| SL1555-2XL-18.5 | $\le 25\%$ | $\le 150$ | 18.5 | 50-70 | 36-40 |
| SL2055-2XL-30 | $\le 25\%$ | $\le 200$ | 30 | 100-120 | 35-38 |
| SL2055-2XL-37 | $\le 25\%$ | $\le 200$ | 37 | 200-230 | 40-45 |
| SL2455-2XL-55/75 | $\le 25\%$ | $\le 200$ | 55-75 | 300-350 | 40-45 |
Horizontal Sand Washer Technical Specifications
| Model | Feed Size (mm) | Power (kW) | Capacity (T/h) | Main Shaft Safe Speed (R/Min) |
| WS1070-XL | $\le 10$ | 7.5 | 50-60 | 15 |
| WS1270-2XL | $\le 10$ | 11*2 | 100-120 | 15 |
| WS1570-2XL | $\le 10$ | 18.5*2 | 200-230 | 14 |
| WS1870-2XL/Split | $\le 10$ | 30*2 | 300-330 | 12 |
Capacity Sheet
| Name | Size (mm) | Pcs/Mould | Pcs/8 Hours |
| Hollow Block | 390 × 190 × 190 | 10 | 14,400-19,200 |
| Porous Block | 240 × 115 × 90 | 24 | 34,560-46,080 |
| Solid Brick | 240 × 115 × 51 | 51 | 73,440-97,920 |
| Holland Paver | 200 × 100 × 60 | 36 | 46,800-59,400 |
Technical advantages
Hydraulic system:With “Yuken” brand double proportional valve and directional valves, the flow and pressure of each movement could be adjusted on touch panel,machine running smoothly without impact,through the double vane pump,different actions run simultaneously,greatly improve production efficiency.
PLC Control system:Combined with German automatic control technology and system, it adopts German Siemens PLC and Siemens touch screen control to make each action accurate and reliable, computer operation saves time and effort, easy operation with low failure rate.
Vibration table:With Static and Dynamic vibration table,it is designed to ensure the amplitude of the vibration table, so as to ensure the high density of concrete products.
Feeding cart: New design of feeding cart can feed the material into the mold very quickly and evenly,with less maintenance.
Mould:Special heat treatment for mold frame and tamper head plates ensure mould hardness can reach HRC58-62 for long life span.
Hydraulic system:With “Yuken” brand double proportional valve and directional valves, the flow and pressure of each movement could be adjusted on touch panel,machine running smoothly without impact,through the double vane pump,different actions run simultaneously,greatly improve production efficiency.
PLC Control system:Combined with German automatic control technology and system, it adopts German Siemens PLC and Siemens touch screen control to make each action accurate and reliable, computer operation saves time and effort, easy operation with low failure rate.
Vibration table:With Static and Dynamic vibration table,it is designed to ensure the amplitude of the vibration table, so as to ensure the high density of concrete products.
Feeding cart: New design of feeding cart can feed the material into the mold very quickly and evenly,with less maintenance.
Mould:Special heat treatment for mold frame and tamper head plates ensure mould hardness can reach HRC58-62 for long life span.
